| 型式 MODEL |
最高使用壓力 MAX.PRESSURE kgf/c㎡ |
最大流量 MAX.FLOW LPM |
開(kāi)啟壓力 CRACKING PRESSURE kgf/c㎡ |
重量 WEIGHT (kg) |
| MPC-02-A/B/W | 250 | 150 | 1:0.5?? 2:5.0 | 1.4 |
| MPC-03-A/B/W | 250 | 100 | 1:0.5?? 2:5.0 | 3.0 |
| MPC-06-A/B/W | 250 | 180 | 1:0.5?? 2:5.0 | 13.5 |

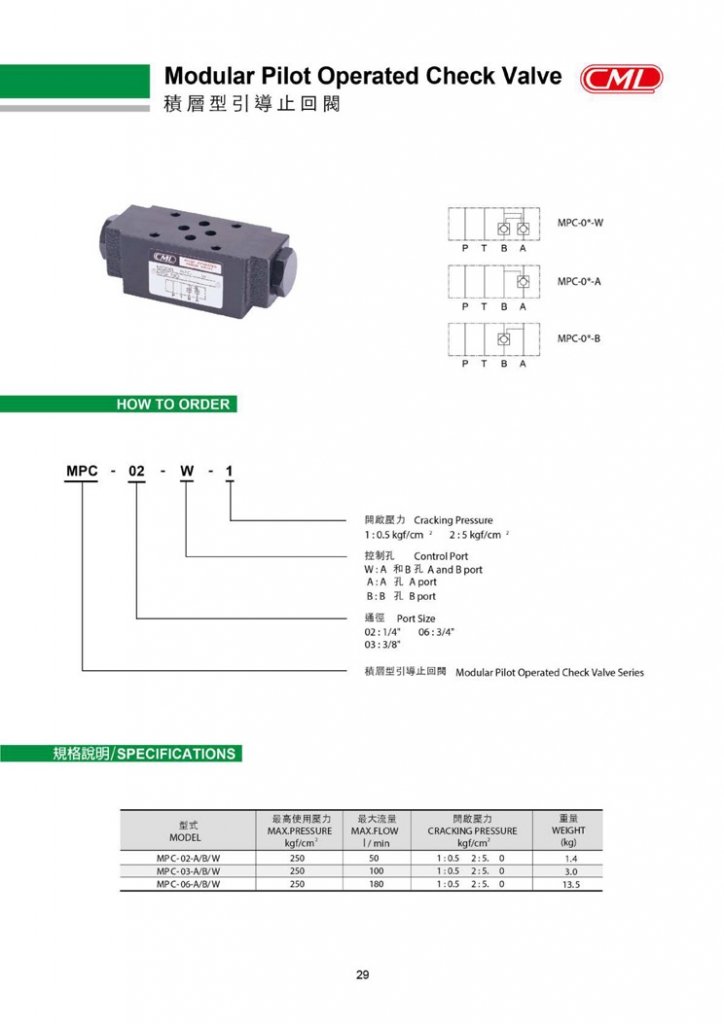

CML積層閥,積層引導止回閥MPC-02,MPC-03系列型號參考
MPC-03-W-1 , MPC-03-B-1 , MPC-03-A-1 , MPC-02-W-1 , MPC-02-B-1 , MPC-02-A-1 , MPC-03-W-2 , MPC-03-B-2 , MPC-03-A-2 , MPC-02-W-2 , MPC-02-B-2 , MPC-02-A-2
